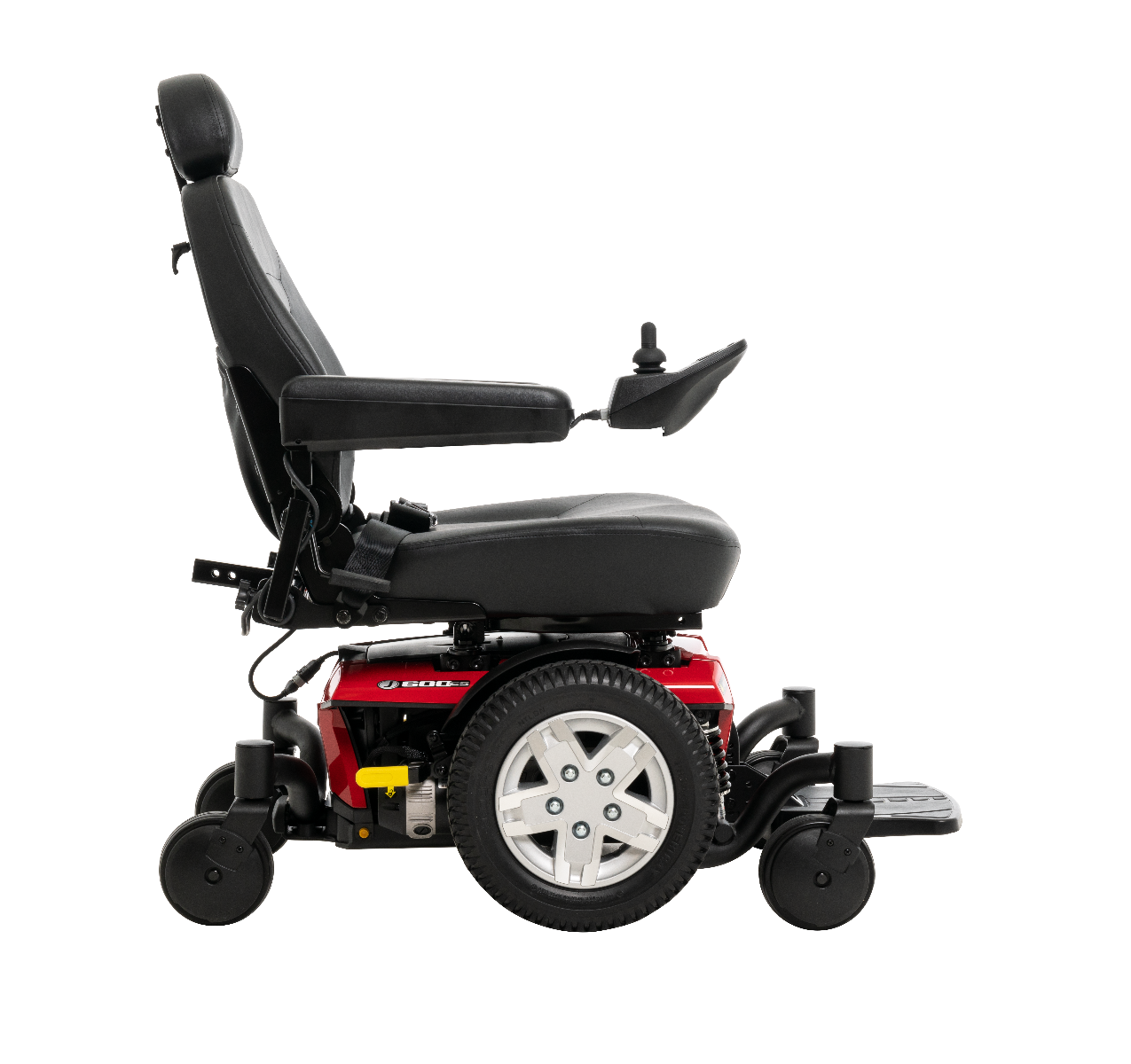

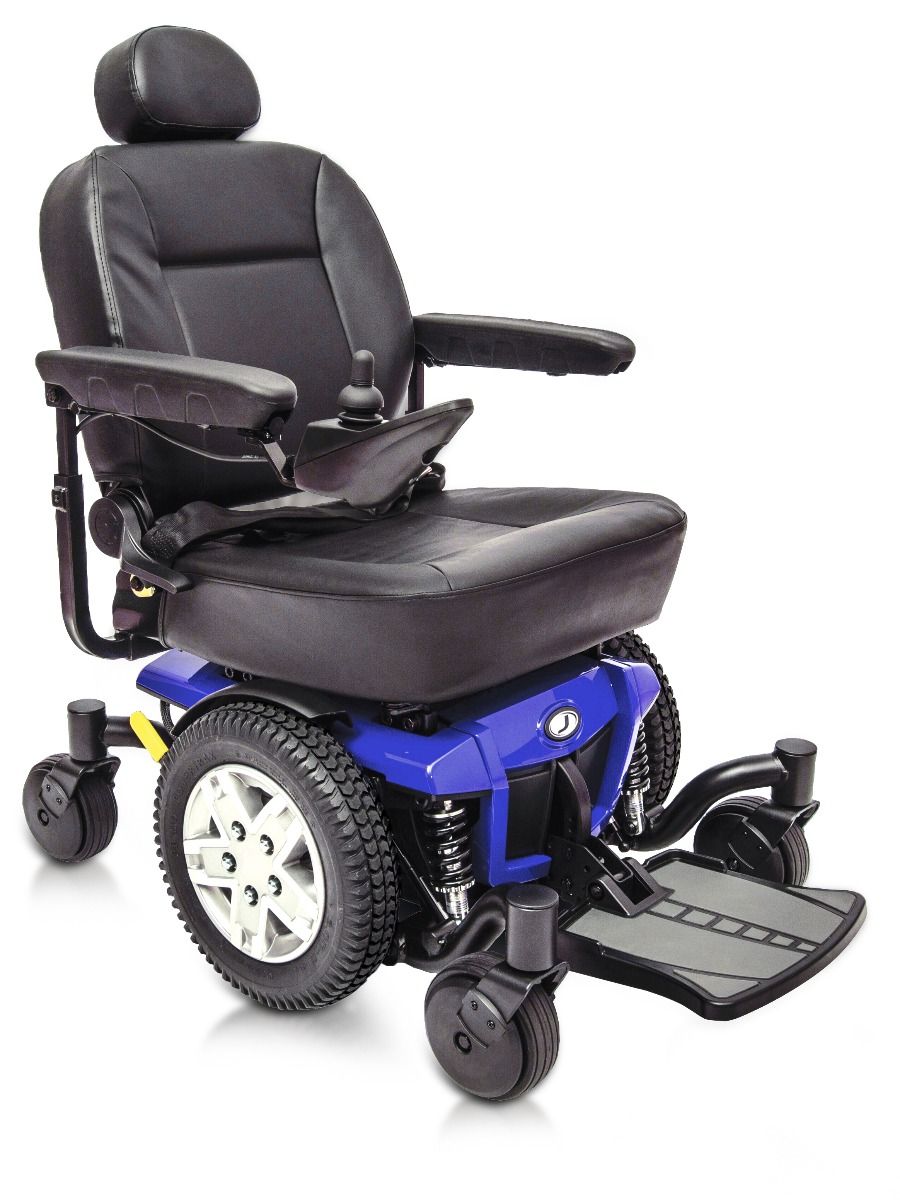

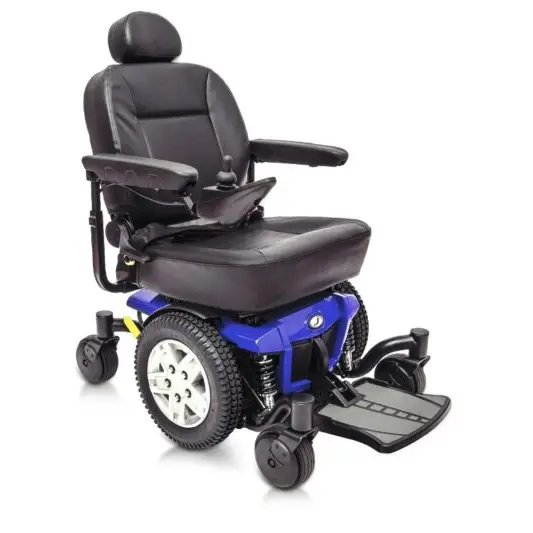

Jazzy 600 ES
Outstanding performance, excellent control
The Jazzy® 600 ES provides excellent performance and outstanding stability. Its compact design and standard Active-Trac® ATX Suspension allow it to excel indoors and out, making it a superb, all-around power chair choice.
Specifications
| Weight Capacity | 21 Stone 6lbs (136 kg) |
| Maximum Speed | 4 mph (6km/h) |
| Ground Clearance | 7 cm (2.75″) |
| Overall Length | 90.2 cm (35.5″) |
| Overall Width | 62.2 cm (24.5″) |
| Turning Radius | 52.1 cm (20.5″) |
| Standard Controls | PG VR2 Control |
| Heaviest Piece (when disassembled) | |
| Total Weight (without batteries) | 56.1 kg (123.6 lbs) |
| Seating | Comfort High Back Seat 16” W — Adjustable depth from 16” – 18” 18” W — Adjustable depth from 18” – 20” 20” W — Adjustable depth from 18” – 20” |
| Tyres | Castors: 15.24 cm (6”) solid rear and front Drive: 35.56 cm (14”) |
| Suspension | Active-Trac® (ATX) |
| Battery Requirements | Two 12-volt, deep cycle (standard) Size: 2x 50 AH |
| Battery Weight (each) | 50 AH: 16.9 kg (37.2 lbs) |
| Note | 1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
